TSN-66 PROMINAR

66mm PURE FLUORITE CRYSTAL COMPACT SERIES.
The TSN-66 PROMINAR’s cutting-edge technology enables it to deliver exceptional optical performance, outdoor enthusiasts access to a level of detail and clarity typically found only in larger, heavier spotting scopes.

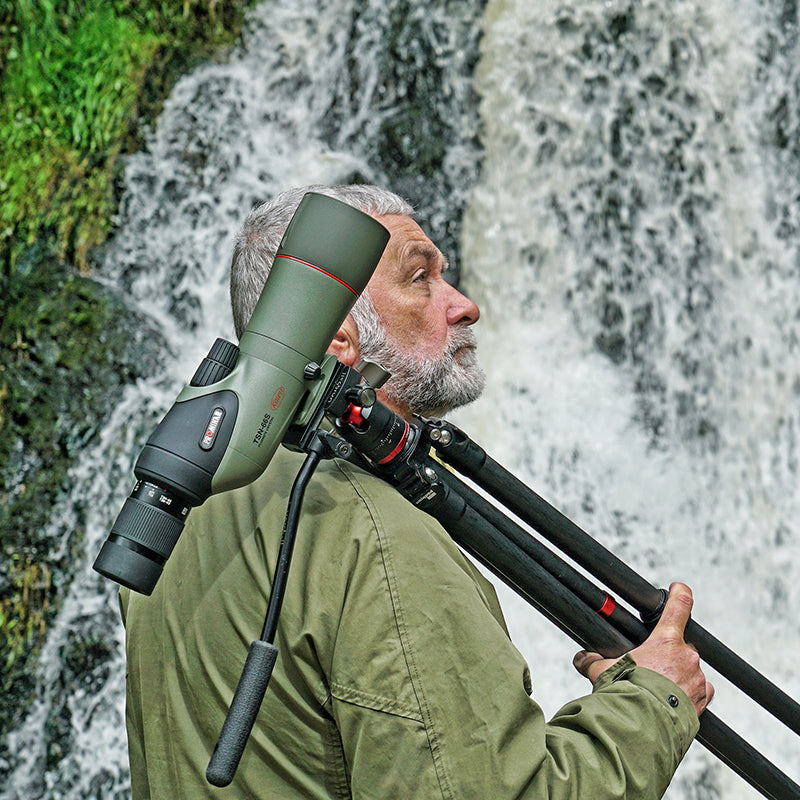

Ultra Compact

The PROMINAR range has set the standard for optical quality and performance, delivering outstanding image clarity and resolution. The TSN-66 PROMINAR upholds this tradition, and now offers nature enthusiasts the opportunity to experience the precision and clarity of a PROMINAR spotting scope in a more compact and lightweight form.

66mm Pure Fluorite Crystal Objective Lens

The new TSN-66 series features an 66mm pure fluorite crystal objective lens - the true optical powerhouse at the heart of all PROMINAR flagship optics. This unique lens redefines the standards of color brilliance and eliminates chromatic aberration for one of the most detailed views of the natural world.

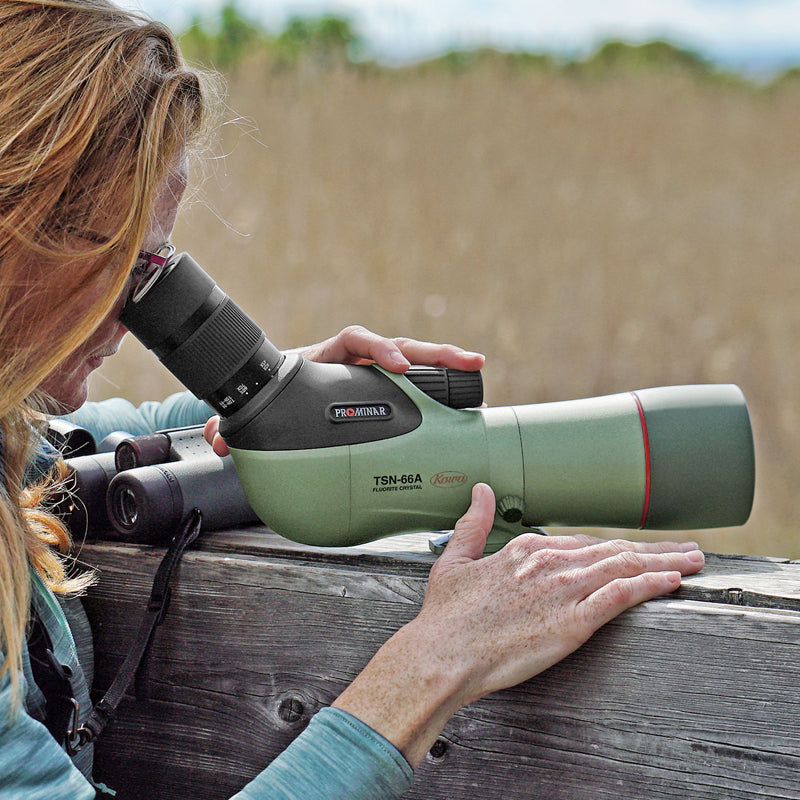

Dual Focus

The dual focus mechanism is the gateway to controlling the image between your eye and the scope. Exquisite engineering is refined to make operation flawless. Quick focus allows for fast action to bring your subject in to detail in just a few smooth revolutions, while the fine focus gives pin-point, finger-tip control offering the ultimate in focusing accuracy.

  • NATURAL COLOR

    When you use Kowa optics, you can trust that the colours you see are the true colours of nature. This creates an image free of chromatic aberration (colour blur) and negative optical distractions, which enables you to fully immerse yourself into the scene in front of you.

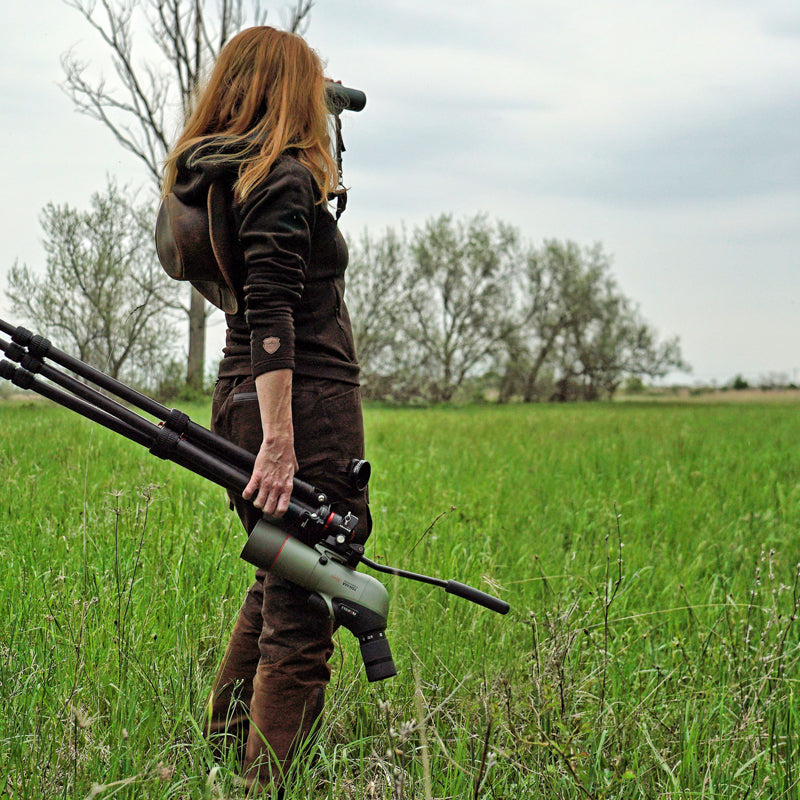

  • PERFECT BALANCE

    Strong, light and built to last. The 100% magnesium alloy body not only provides robustness but also ensures a lightweight design. With a fully sealed outer body, this spotting scope is 100% waterproof and nitrogen-filled, making it impervious to the elements.

  • COMPACT DIGISCOPING

    The TSN-66 PROMINAR series scopes are highly effective digiscoping tools due to their pure fluorite crystal lens, which provides unparalleled image clarity and brightness. Experience the ultimate travel companion for wildlife photographers on the go.

Product Video

Buy TSN-66 PROMINAR

Features and Specification

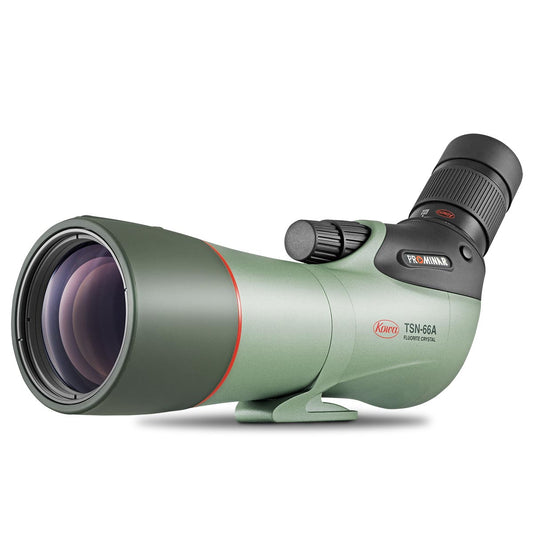

  • TSN-66A PROMINAR | ANGLED

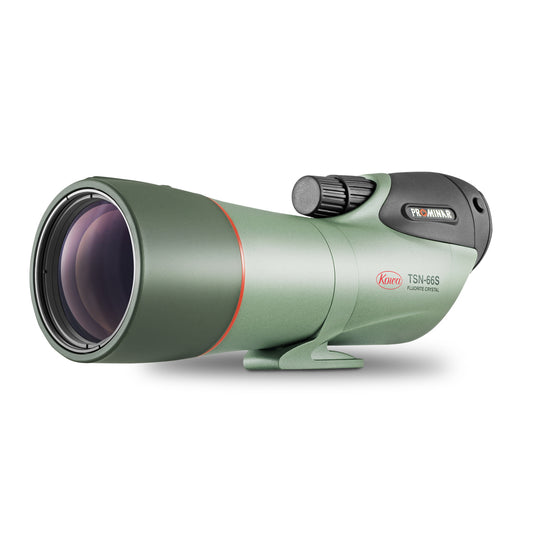

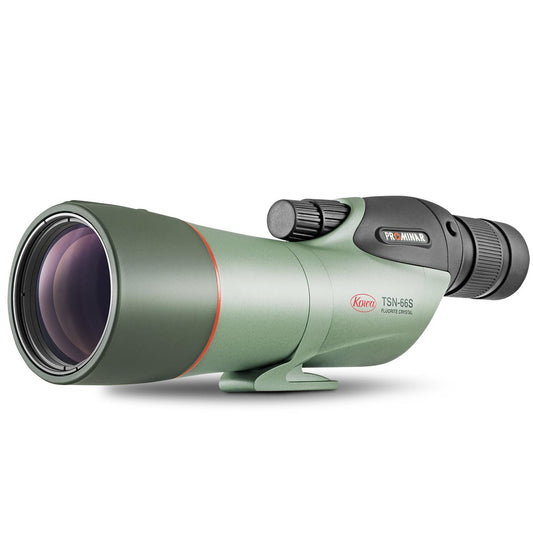

  • TSN-66S PROMINAR | STRAIGHT

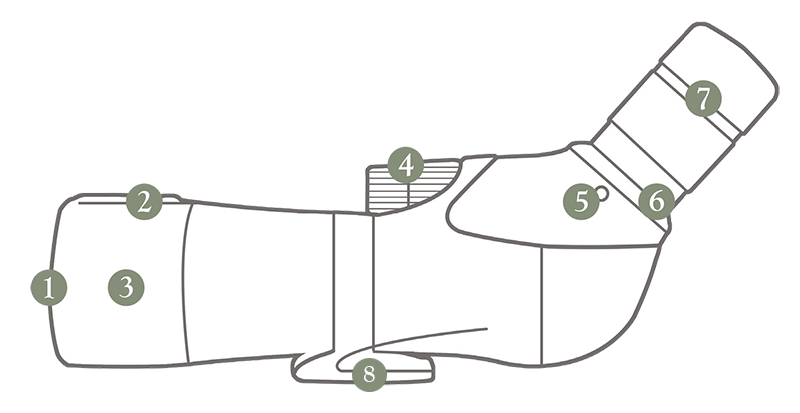

FEATURES

  1. 72 mm. Filter Thread
  2. Aiming Sight
  3. Twist Out Sunshade
  4. Dual Focus Wheel
  5. Eyepiece Release Button
  6. Adapter Accessory Collar
  7. Eyepiece (Zoom Sets Only)
  8. Dual Tripod Mount

TECHNICAL INFORMATION

SPOTTING SCOPE BODY

  TSN-66A (Angled) TSN-66S (Straight)
Objective Diameter 66 mm. 66 mm.
Lens Material Fluorite Crystal Fluorite Crystal
Minimum Focus 11.5 ft. 11.5 ft.
Length 12.2 in. 11.6 in.
Weight 2.50 lbs. 2.54 lbs.
Filter Size 72 mm. 72 mm.



TE-11WZ II EYEPIECE

Magnification 25 - 60x
Field of View at 1,000 yds. 138 - 75 ft.
Eye Relief 17 mm.
Weight 0.80 lbs.



TE-80XW EYEPIECE

Magnification 35x
Field of View at 1,000 yds. 147.6 ft.
Eye Relief 17 mm.
Weight 1.06 lbs.



NOTE: Eyepiece specification when attached to Kowa TS-66 series.
            Specification changes when attached to other spotting scope bodies.

WHAT'S IN THE BOX

  • TSN-66 PROMINAR Spotting Scope Body
  • TE-11WZ II Wide Angle, Zoom Eyepiece (Zoom Sets Only)
  • Objective Lens Cap
  • Cleaning Cloth

USEFUL DOWNLOADS

Instruction manual

WARRANTY

Limited Lifetime Warranty, subject to normal wear and tear, to its original owner when purchased from an authorized, North American Kowa retailer. To view our full warranty policy, please click here.
